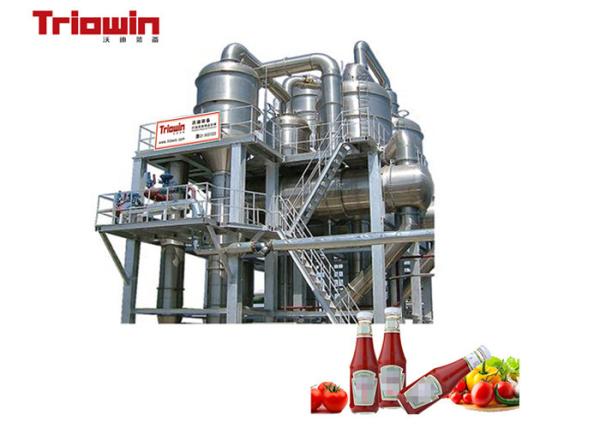

Double vacuumTomato Paste Processing Line 60t/d Export standard package
Shanghai Triowin Intelligent Machinery Co., Ltd a professional tomato processing machine manufacturer and exporter in China.which can provide turnkey solution and technology for tomato processing line.
Description of the tomato processing line:
Tomatoes are usually processed for paste and the processing line mainly includes five parts: fresh tomato receiving, pre-washing and sorting section; extracting section; concentrating section; pasteurizing or sterilizing section; aseptic filling section. It is mainly composed of discharge system, hydraulic convey system, bucket elevating, washing and sorting system, crushing system, pre-heating system, pulping and refining system, evaporating& concentrating system, sterilizing system, aseptic filling system. Tomato paste in aseptic drum can be further processed to ketchup, sauces, juices in tin can/bottle/pouch, etc.
Application of the tomato processing line:
Shanghai triowin offers complete process line on turnkey basis to produce the following end products from tomatoes.
1. Tomato Puree from tomato processing plant
2. Tomato Paste from tomato paste processing plant
3. Tomato Ketchup/Sauces from tomato ketchup puree plant
4. Tomato Juices from tomato juice processing plant
5. Tomato Powder from tomato powder processing plant
Advantage of the tomato processing line:
- * Advanced technology.
- * High quality material, the reasonable component of the market.
- * Semi-automatic as well as fully automatic system available.
- * Field start and related training.
- * The finished product quality is excellent, and the color is delicious.
- * High productivity, flexible production, can be customized according to customer demand.
- * Complete supervision system, equipped with control room to monitor each processing stage.
- * Daily output can be clearly revealed.
Specification of the tomato processing line:
| Raw material handling capacity(t/d) | 60 | 150 | 250 | 500 | 750 | 1000 | 1250 | 1500 | 2000 |
| Evaporation Form | Double
vacuum | Double
vacuum | Three
vacuum | Three
vacuum | Three
vacuum | Three
vacuum | Three
vacuum | Three
vacuum | Three
vacuum |
| Water Consumption | 7.1 | 13.1 | 21.6 | 44.3 | 65.7 | 44.3 | 65.9 | 65.9 | 79.08 |
| Power(kw) | 83.8 | 151.5 | 412.4 | 636.2 | 955.4 | 1291.6 | 1411.1 | 1558.1 | 1869.7 |
| Steam Consumption(t/h) | 1.665 | 3.87 | 5.22 | 9.14 | 15.01 | 20.2 | 24.62 | 29.15 | 34.98 |
| Compressed Air Consumption(t/h) | 66.2 | 66.2 | 66.2 | 72.2 | 72.1 | 72.2 | 72.2 | 72.2 | 86.84 |
| Cooling Water Consumtion(t/h) | 125 | 317 | 307 | 585 | 825 | 1075 | 1410 | 1630 | 1956 |
Flow Chart of tomato processing:
Type of end product:
Tomato Puree
